SPECIFICATIONS

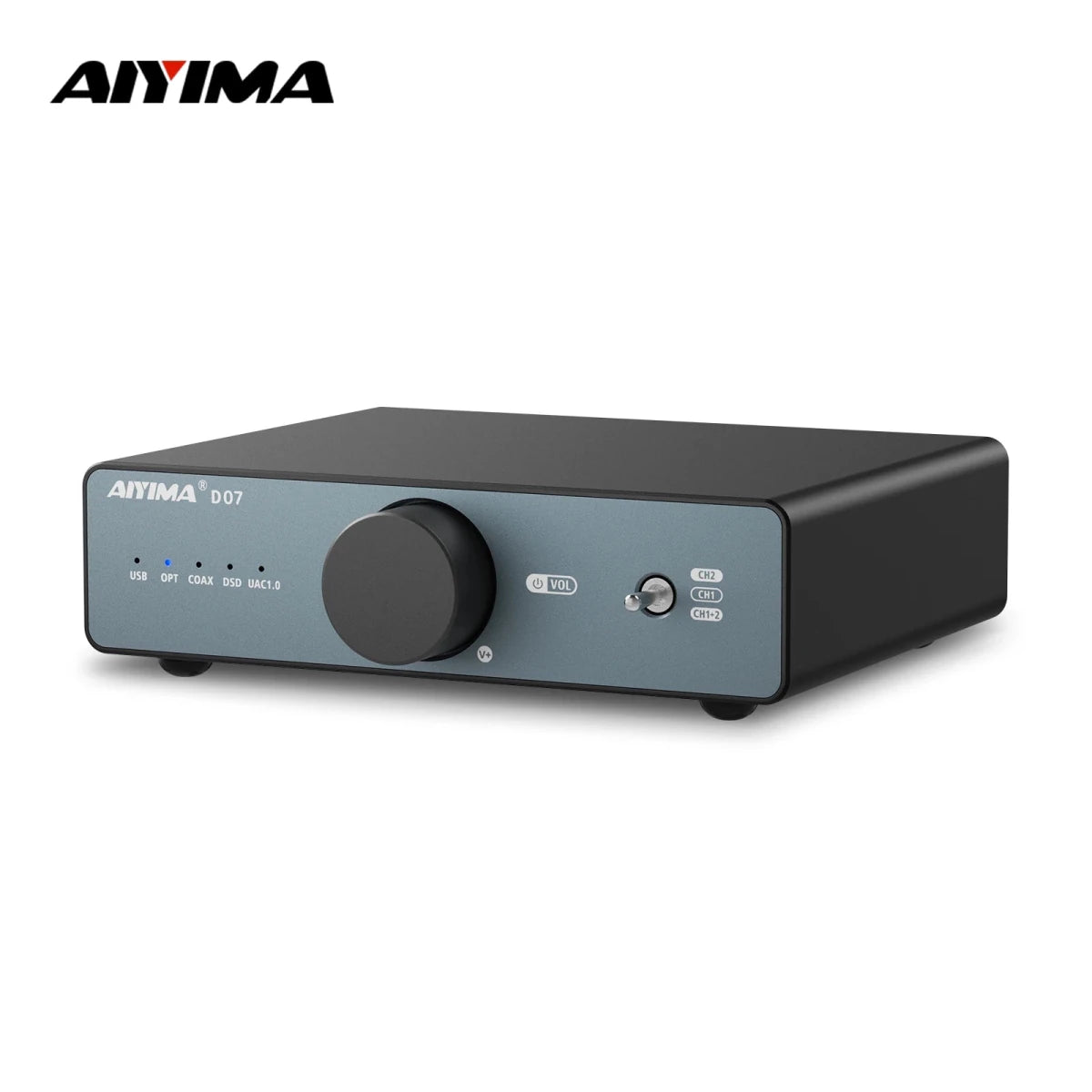

AIYIMA Model: D07

Brand Name: Aiyima

D/A Converter: AKM 4493S

DSD Sampling Frequencies: 22.5792 MHz (DSD512)

Dimensions (W x H x D): 130*100*33mm

High-concerned chemical: None

Inputs: USB Type-A

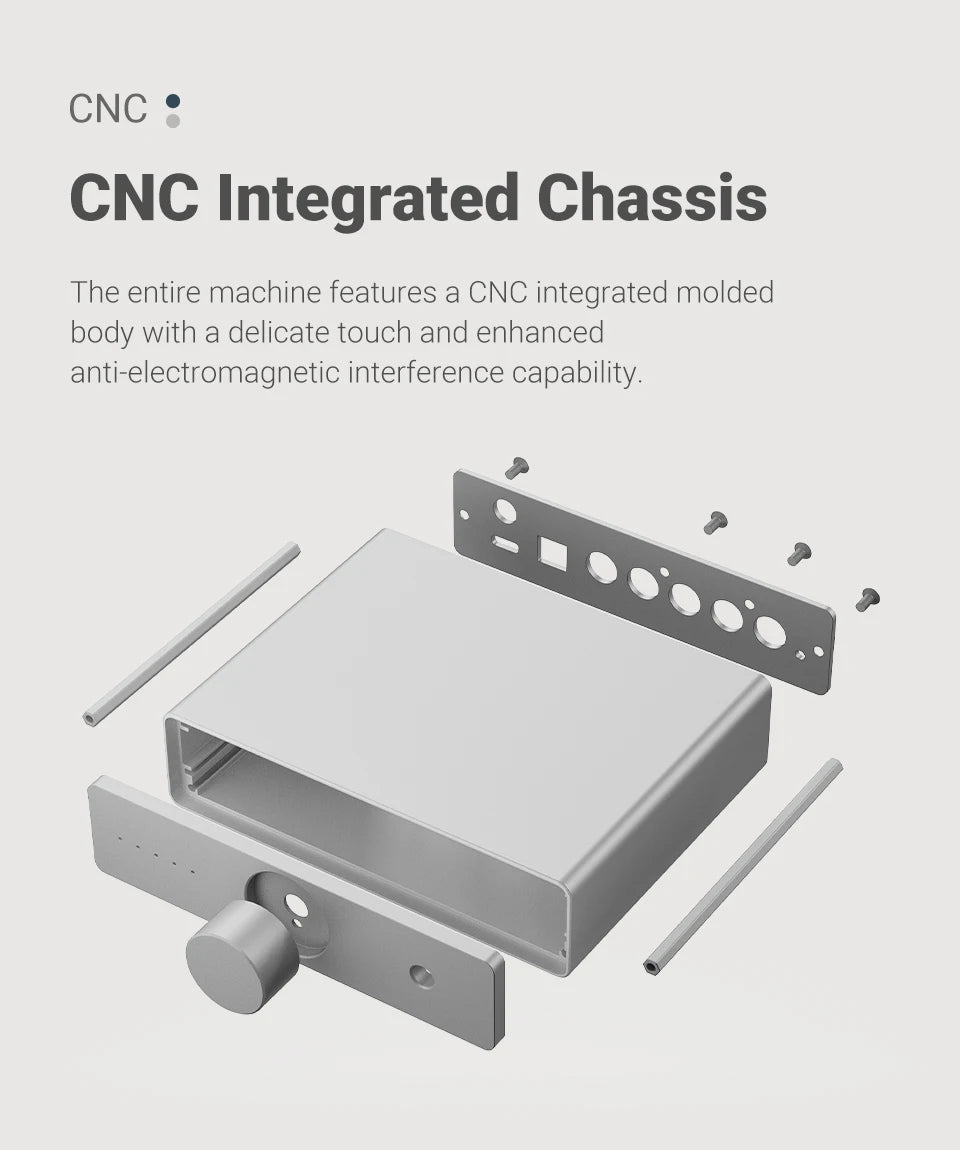

Material: Metal

Origin: Mainland China

Outputs: RCA

PCM Sampling Frequencies: 768 kHz

PCM Word Length: 32-bit

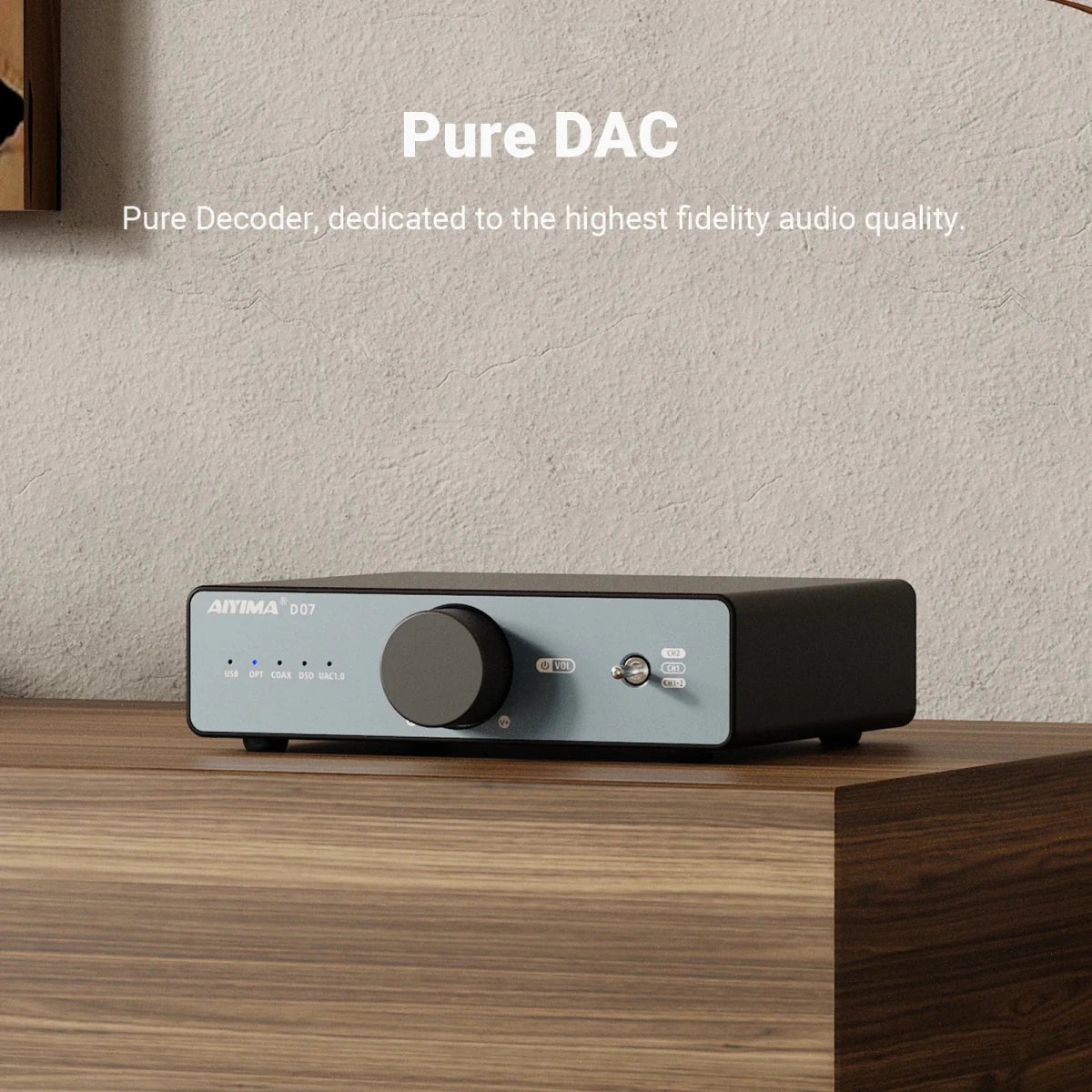

Type: Desktop

Features:

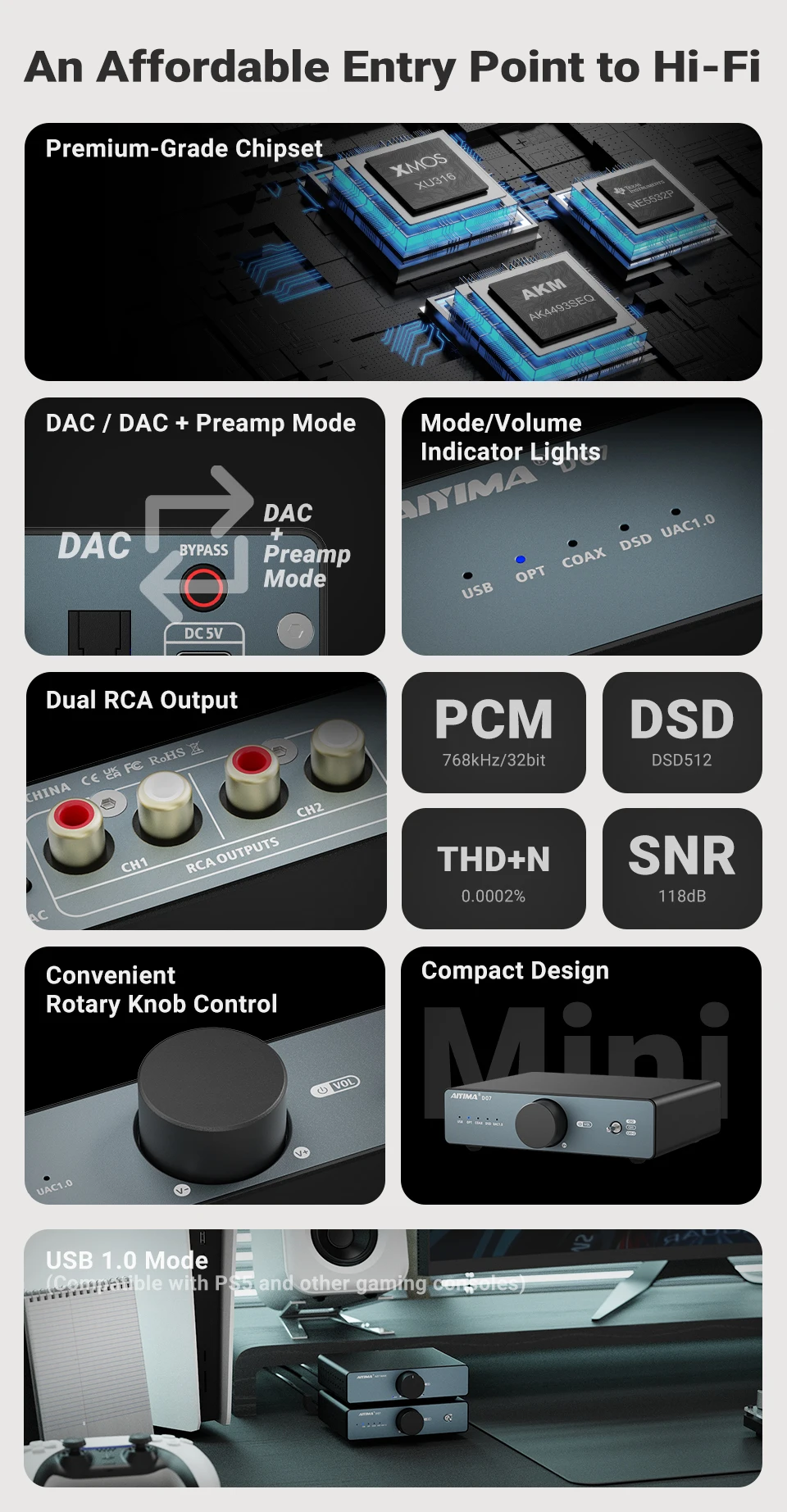

1. Flagship Chipset Combo: AK4493SEQ, XMOS XU316, and NE5532P chipsets enable precise decoding and stable transmission.

2. Outstanding Performance Parameters: With an ultra-low distortion rate of 0.0002% and a signal-to-noise ratio of 118dB, it ensures highly accurate sound reproduction. Supports playback of high-resolution music formats up to PCM 768kHz/32bit and DSD512.

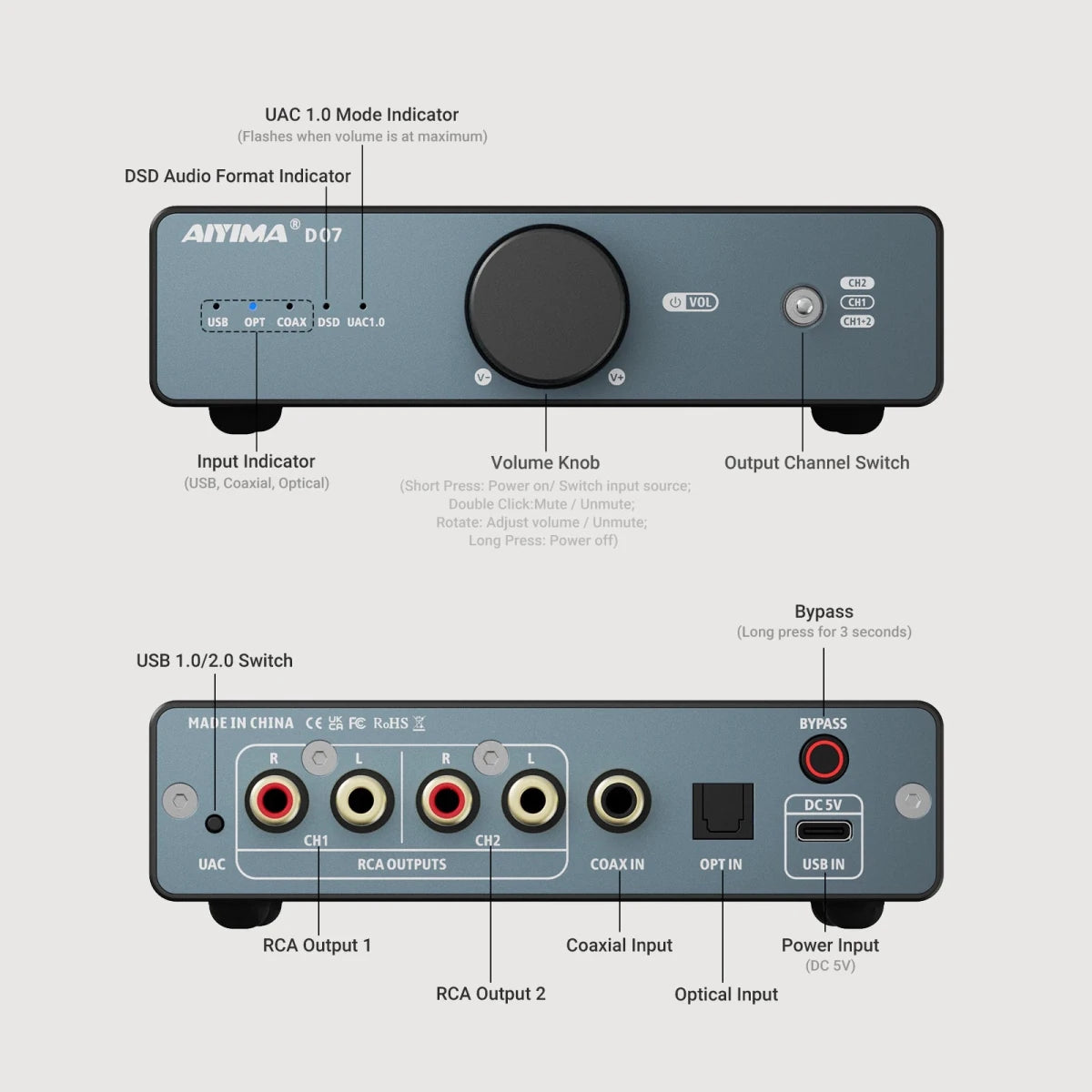

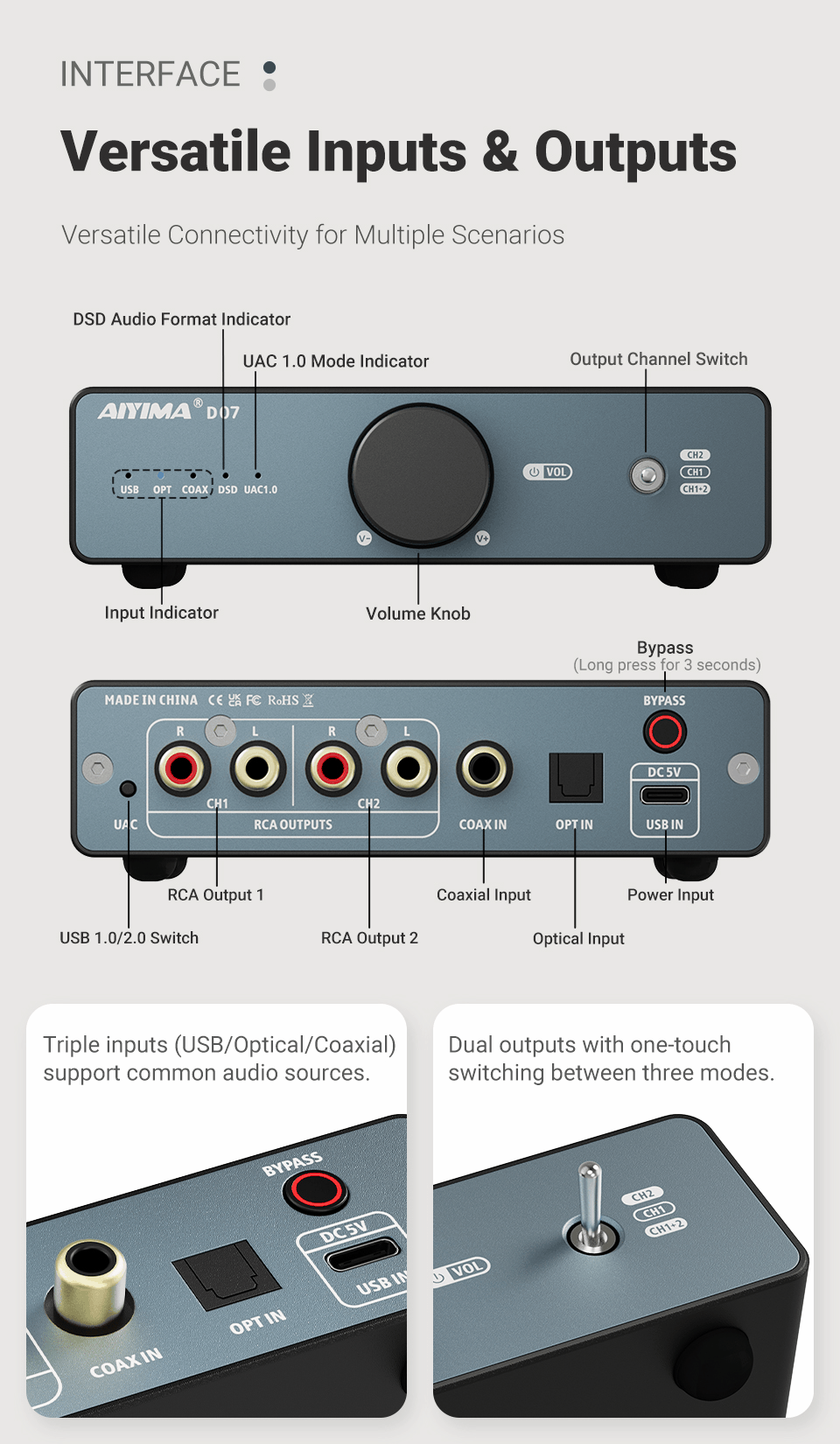

3. Versatile Audio Interfaces: Features three input options—USB, optical, and coaxial—for compatibility with common audio source devices. Dual RCA outputs offer multiple possibilities, with one-touch switching between three output modes.

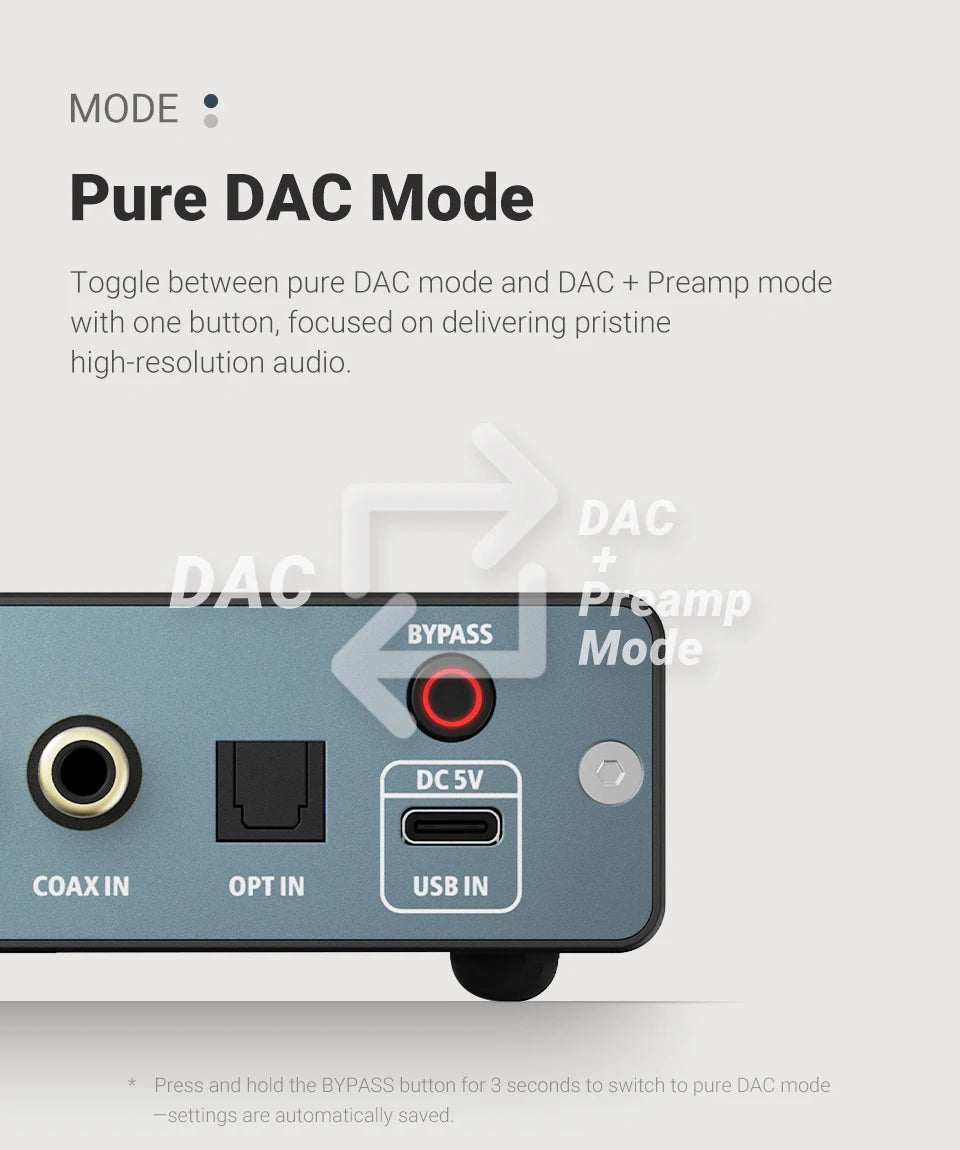

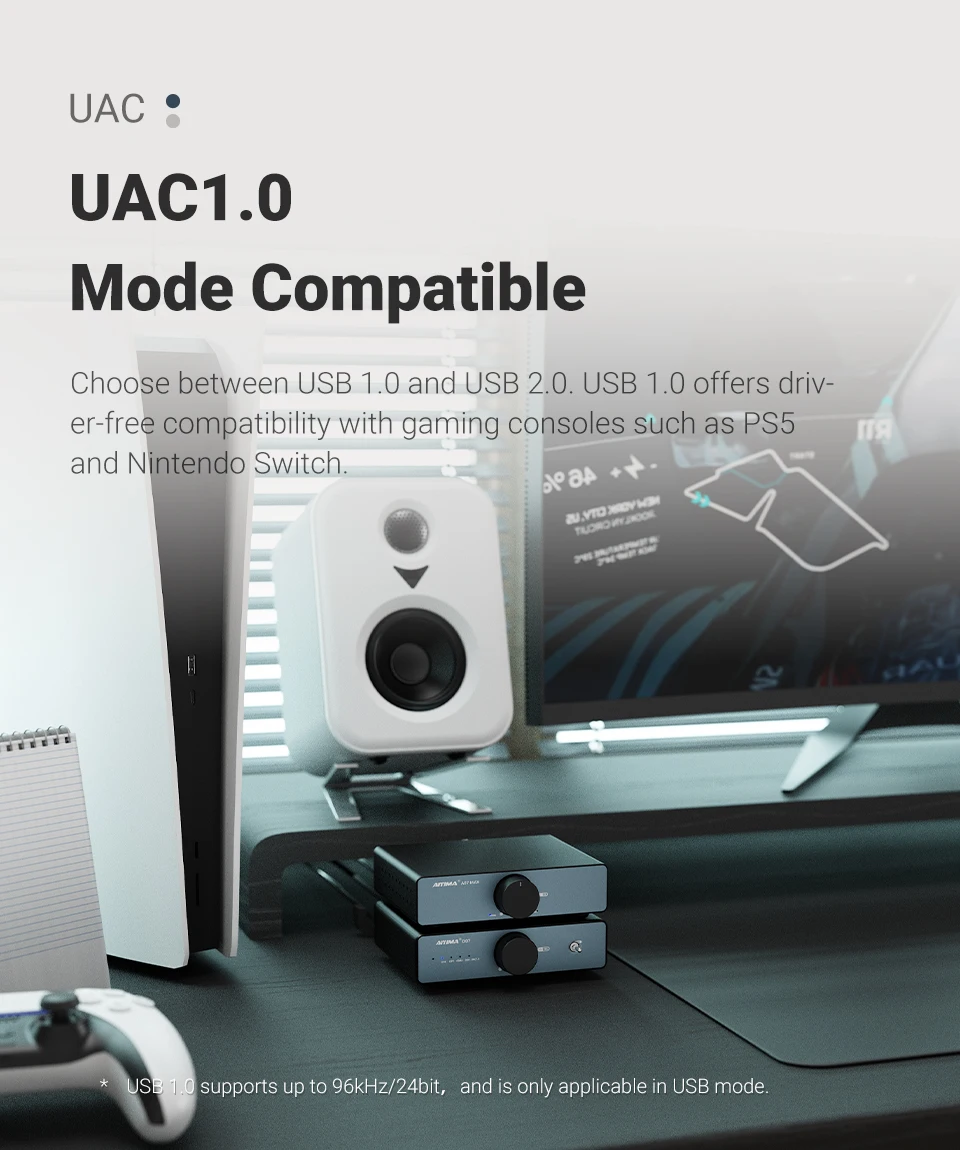

4. One-Touch Switching & Broad Device Compatibility: Easily switch between pure DAC mode and DAC + preamp mode. Press and hold the BYPASS button for three seconds to activate pure DAC mode， When powered off and on again, the BYPASS function automatically reactivates. Offers two USB modes: USB 1.0 (driver-free mode for easy connection to various gaming consoles) and USB 2.0.

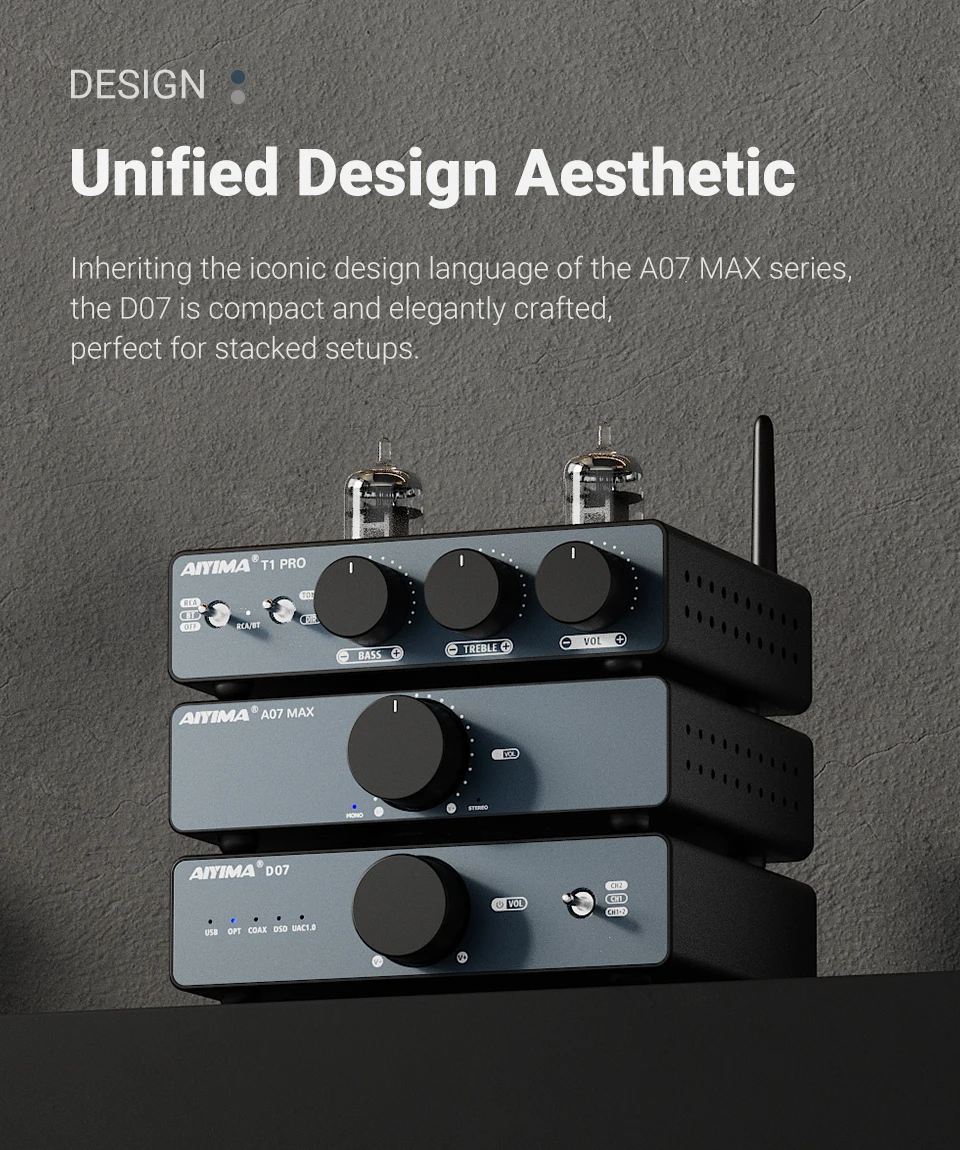

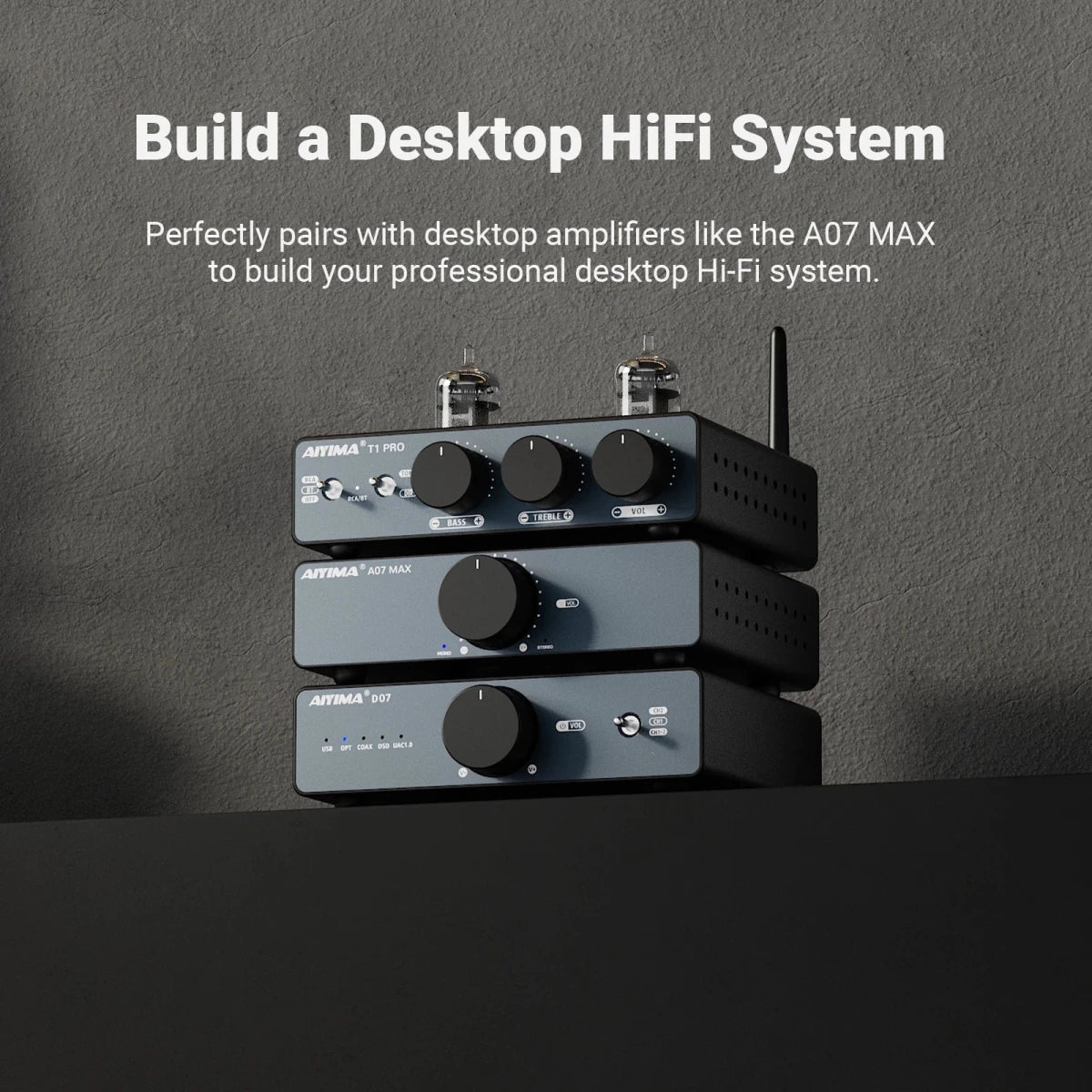

5. A Continuation of Classic Design: Inherits the iconic design language of the A07 MAX series—compact and refined, perfect for stacking and enjoying an elevated audio experience. The D07 pairs seamlessly with the A07 MAX and T1 PRO.

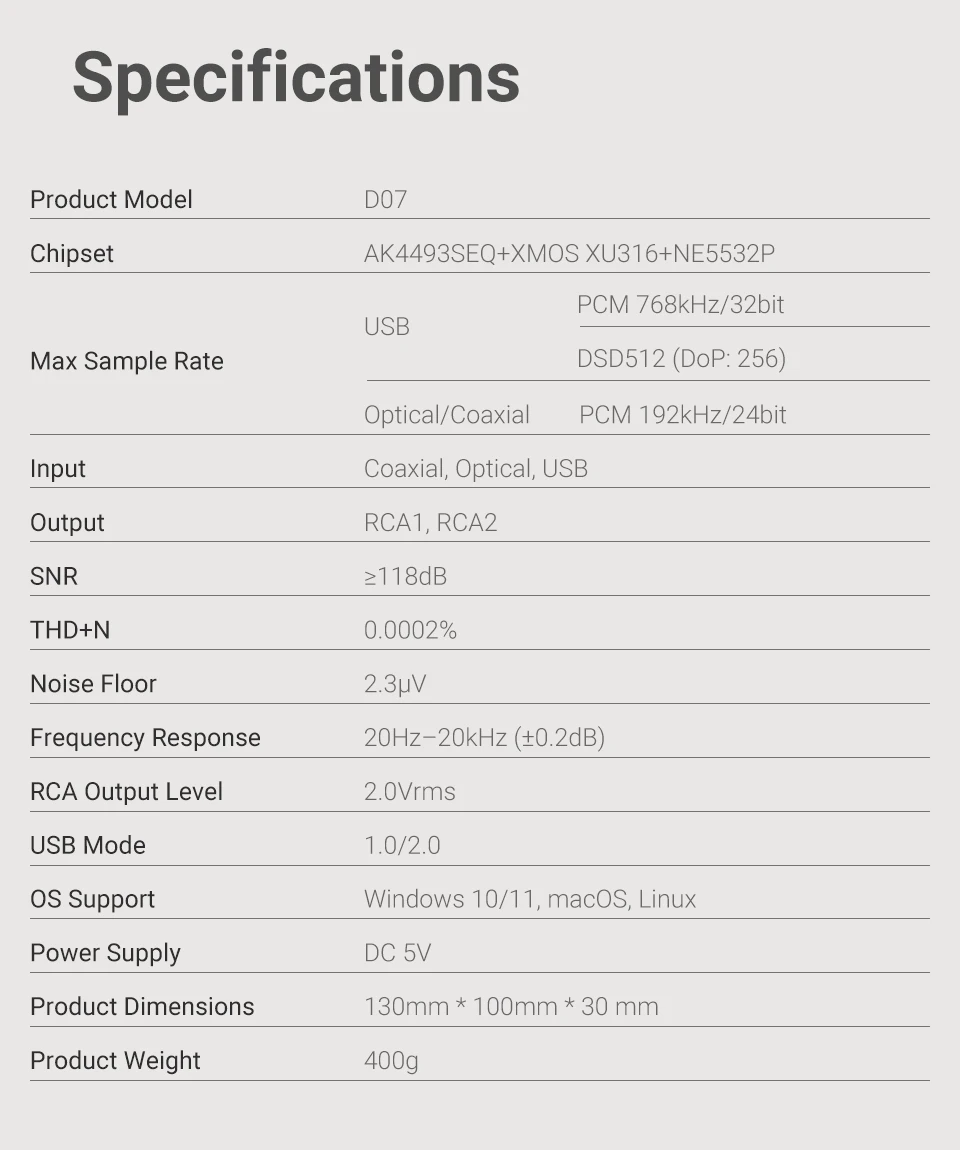

Product parameter:

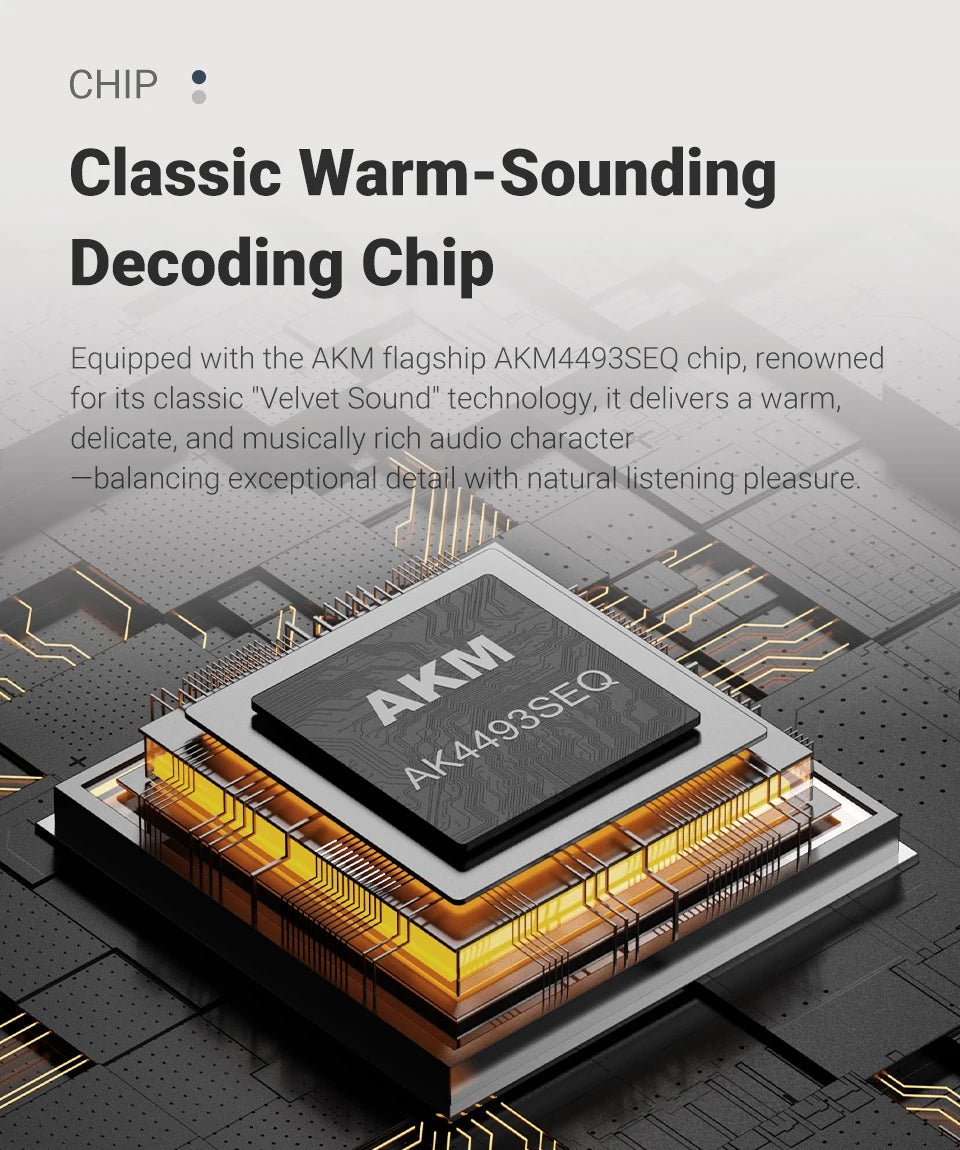

Decoding chip: AKM AK4493SEQ

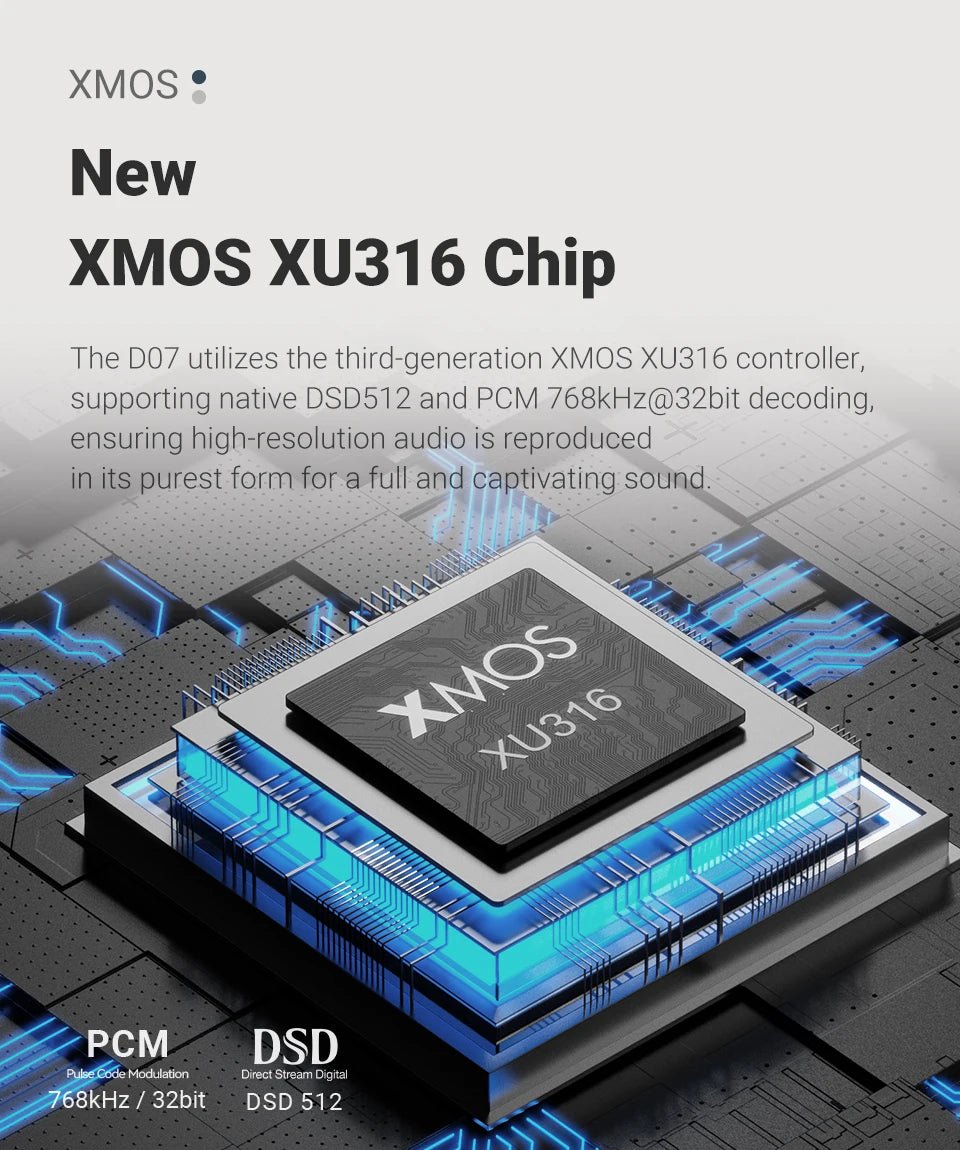

USB chip: XMOS XU316

OP AMP chip: NE5532P*1

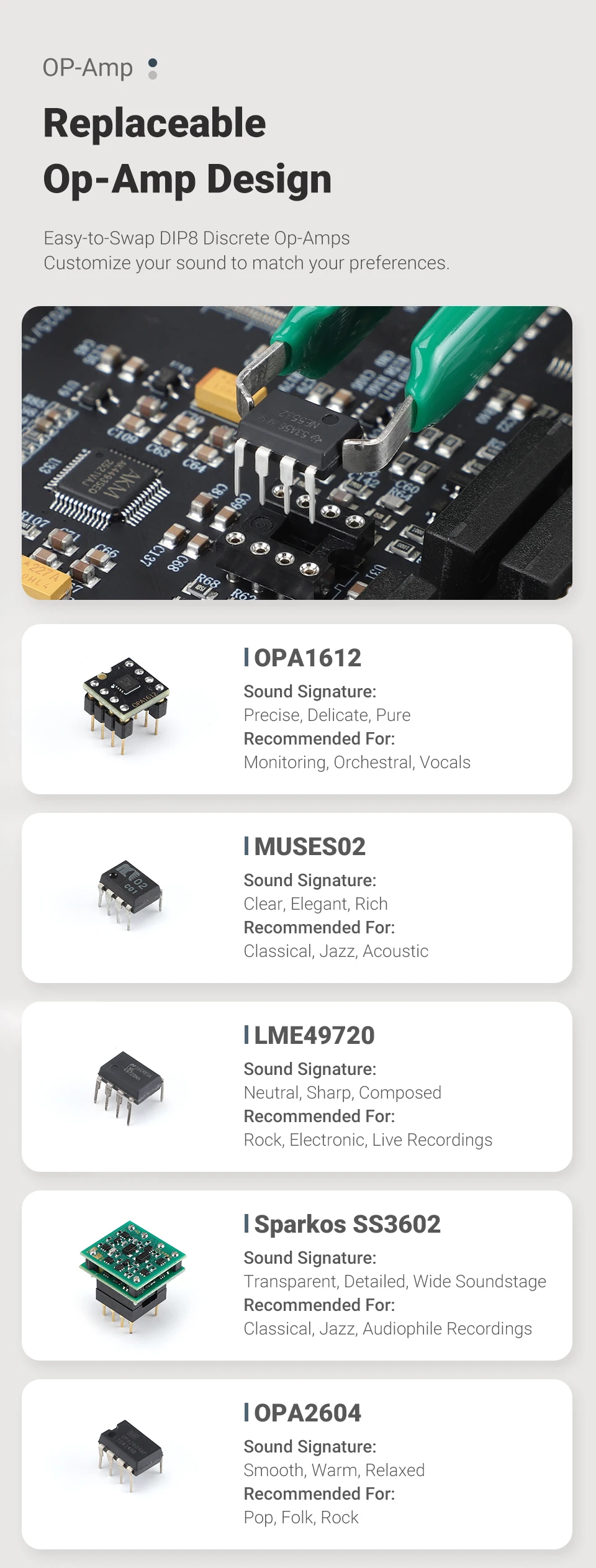

Replaceable OP amp chips: LME49720, OPA1612, OPA2604, MUSE02, etc.

USB sampling rate: PCM 768kHz32bit DSD512 DOP: 256

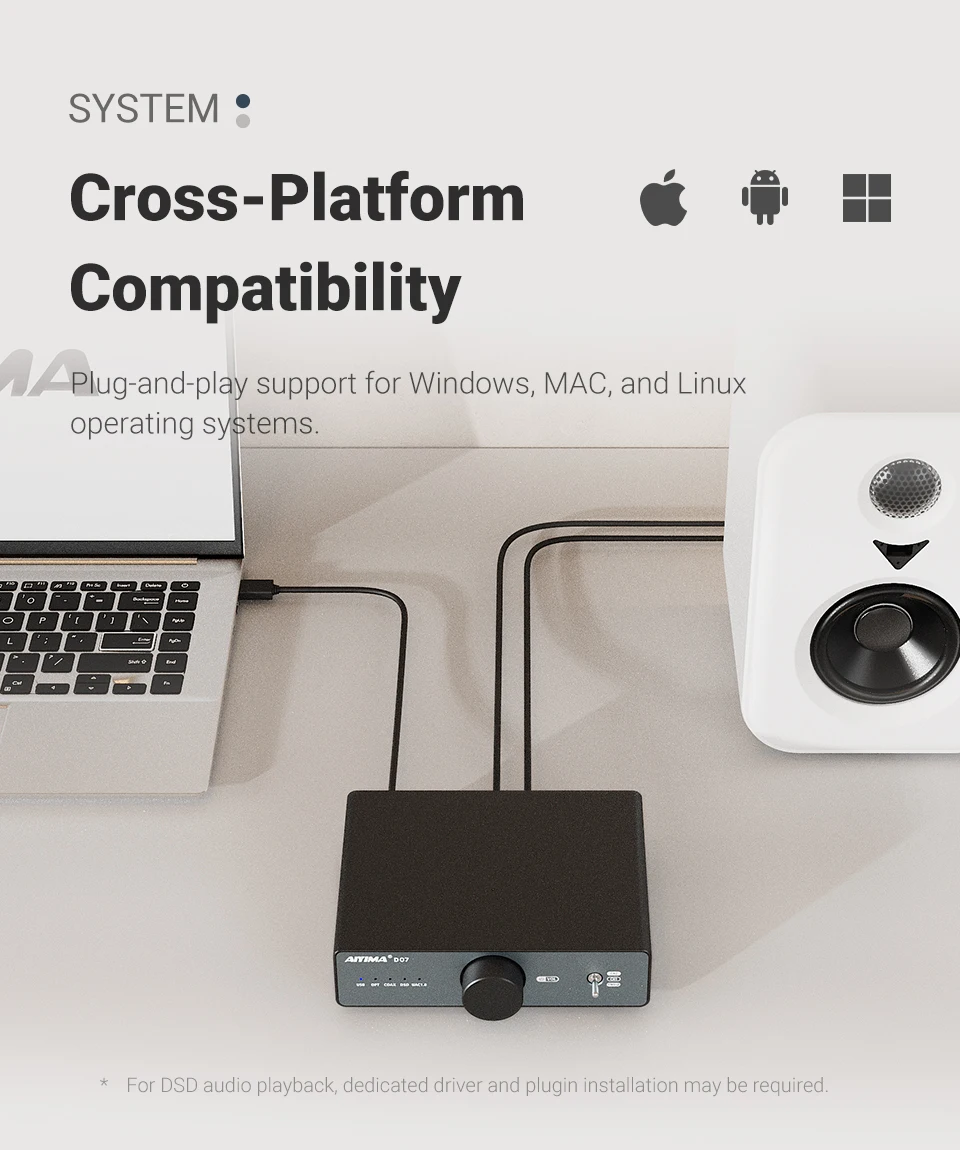

PC-USB Supported operating system: window10 / 11 / MAC / Linux

USB mode: 1.0/2.0

Optical fiber/coaxial sampling rate: PCM 192kHz/24bit

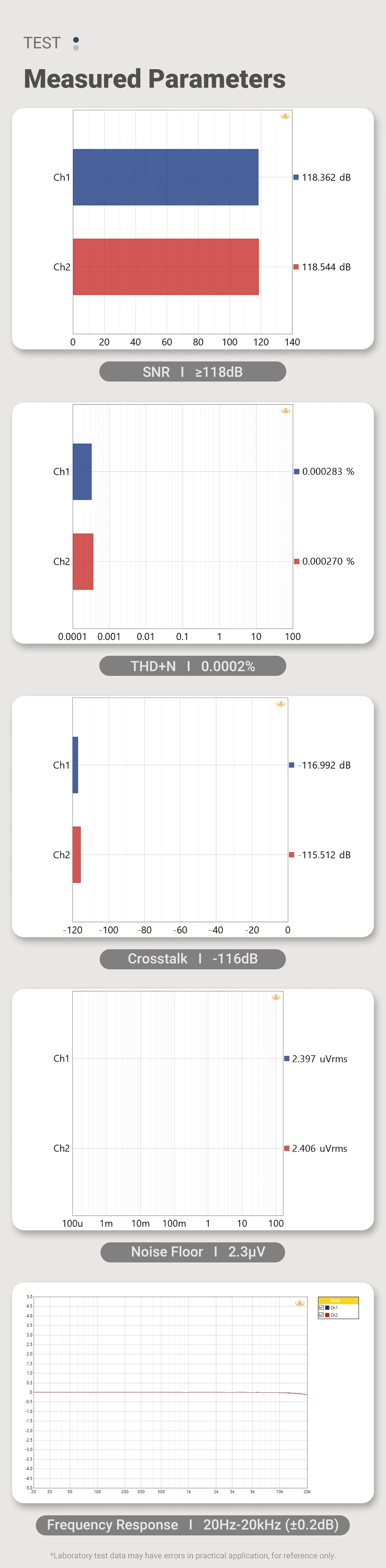

Distortion: 0.0002%

SNR:≥118dB

Frequency response: 20hz-20khz (±0.2dB)

RCA output level: 2Vrms

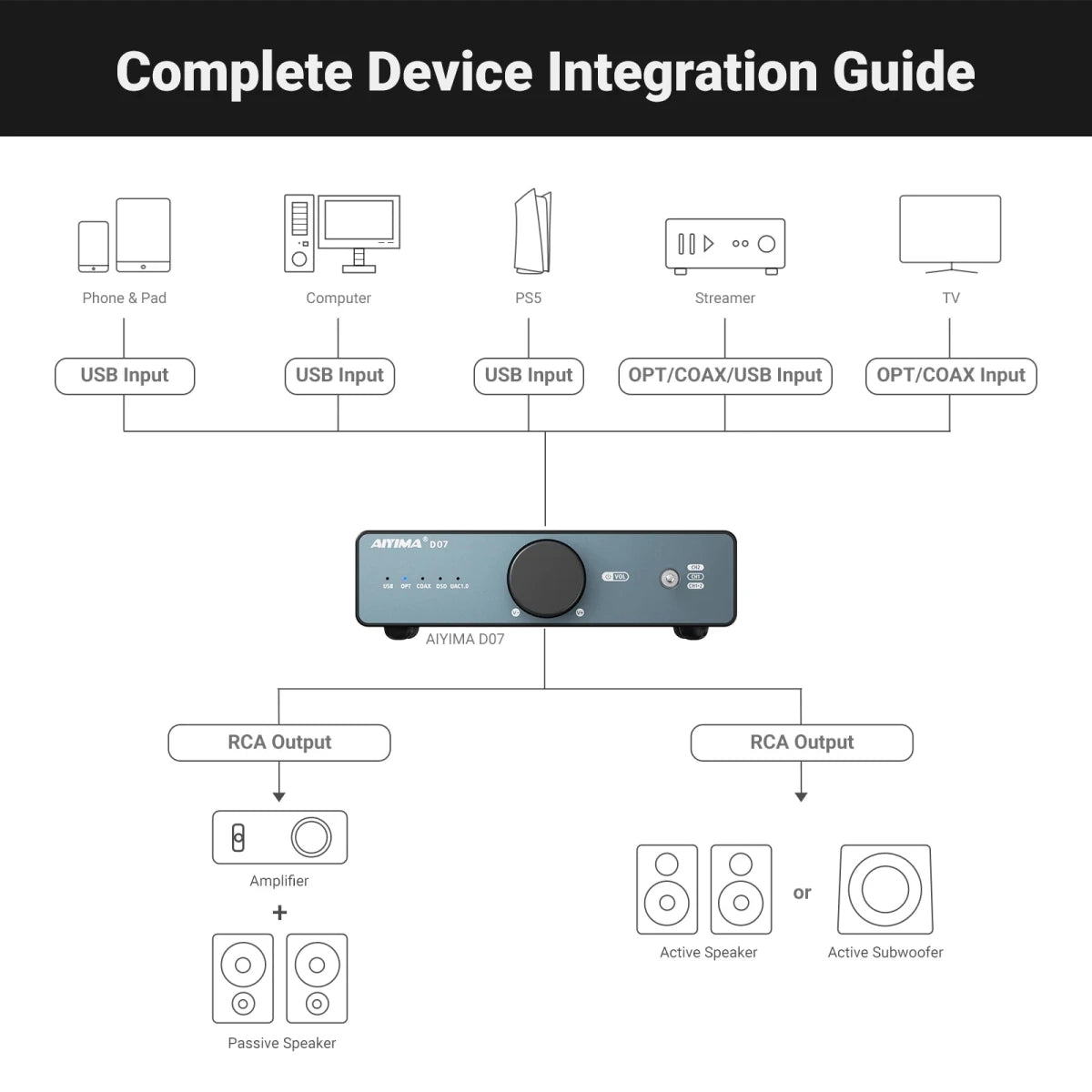

Input mode: USB/optical fiber/coaxial

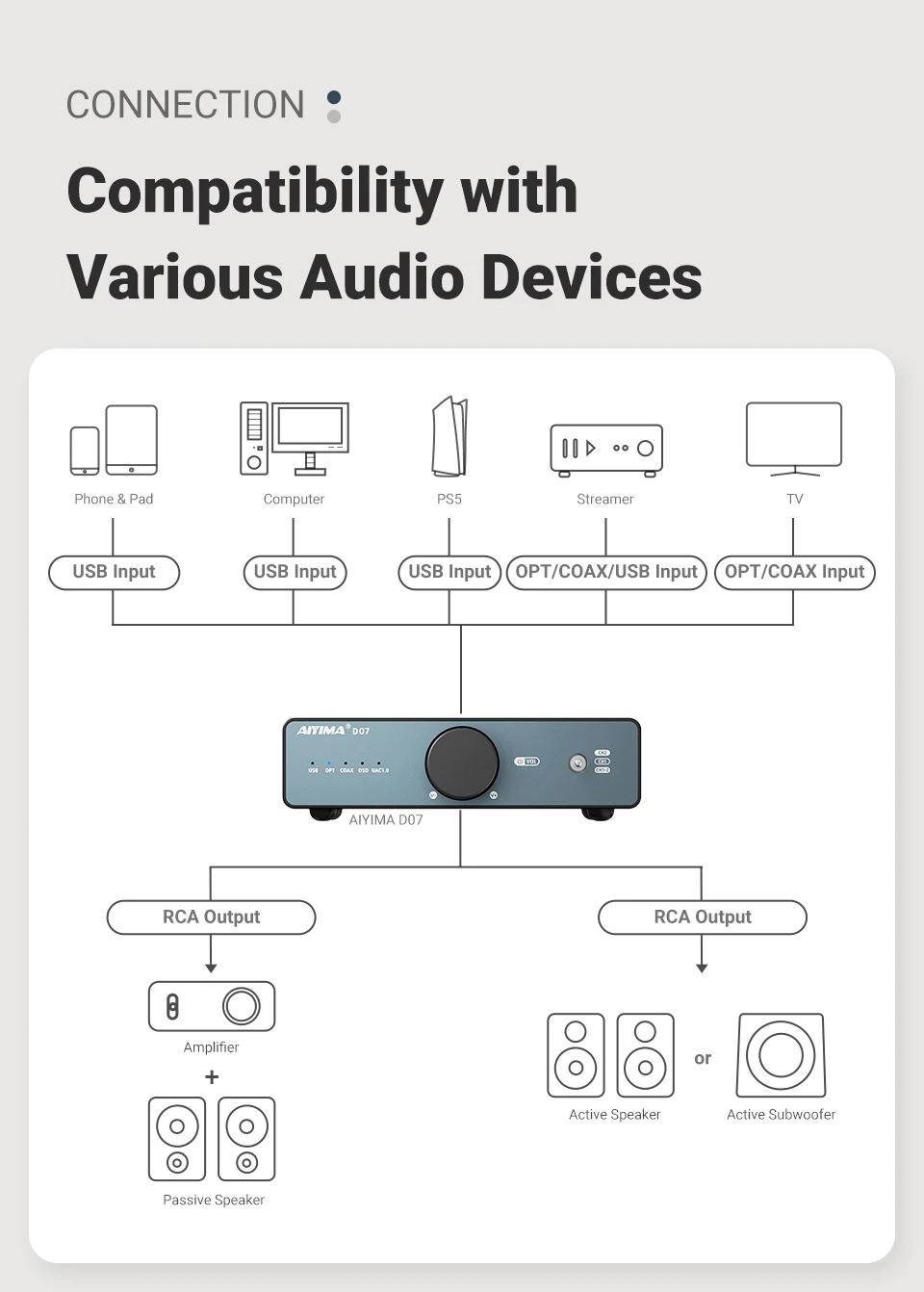

Supported devices: mobile phones, tablets, computers, MP3S, TVs, streaming media, CD players, etc.

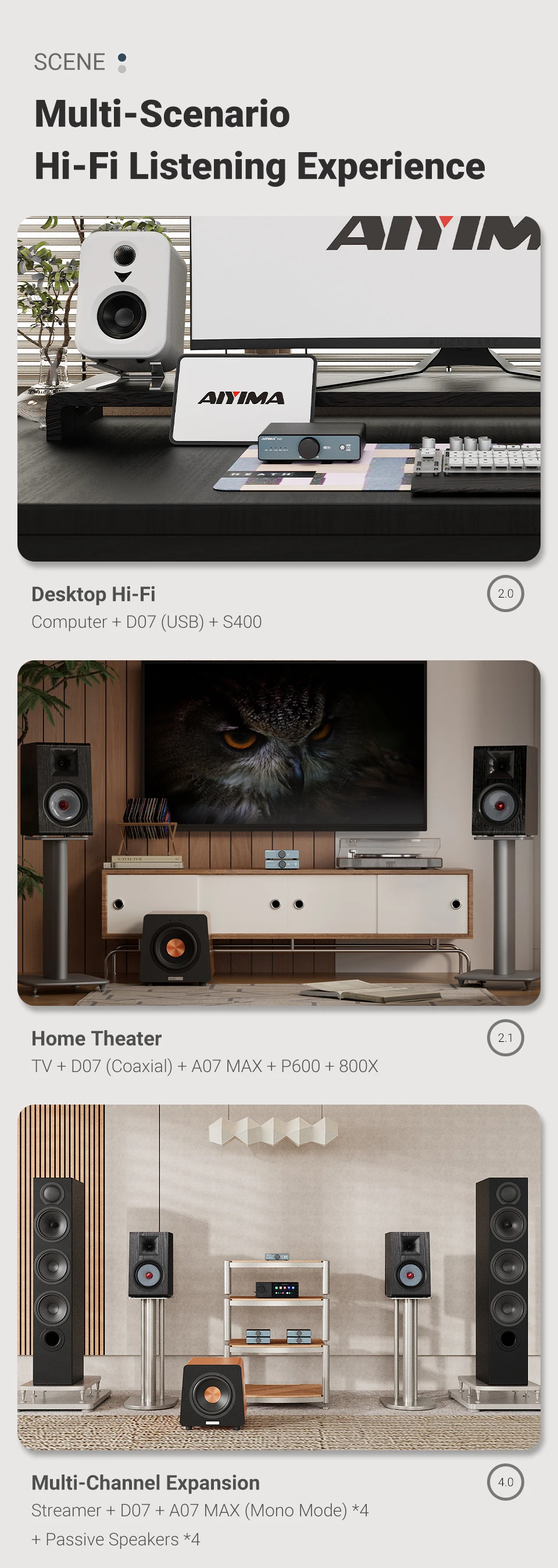

Output mode: active speaker, power amplifier + passive speaker

Working power supply: DC 5V

Product size: 130*100*33mm

Packing size: 265*240*65mm

Product net weight: 400g

Including package weight: 680g

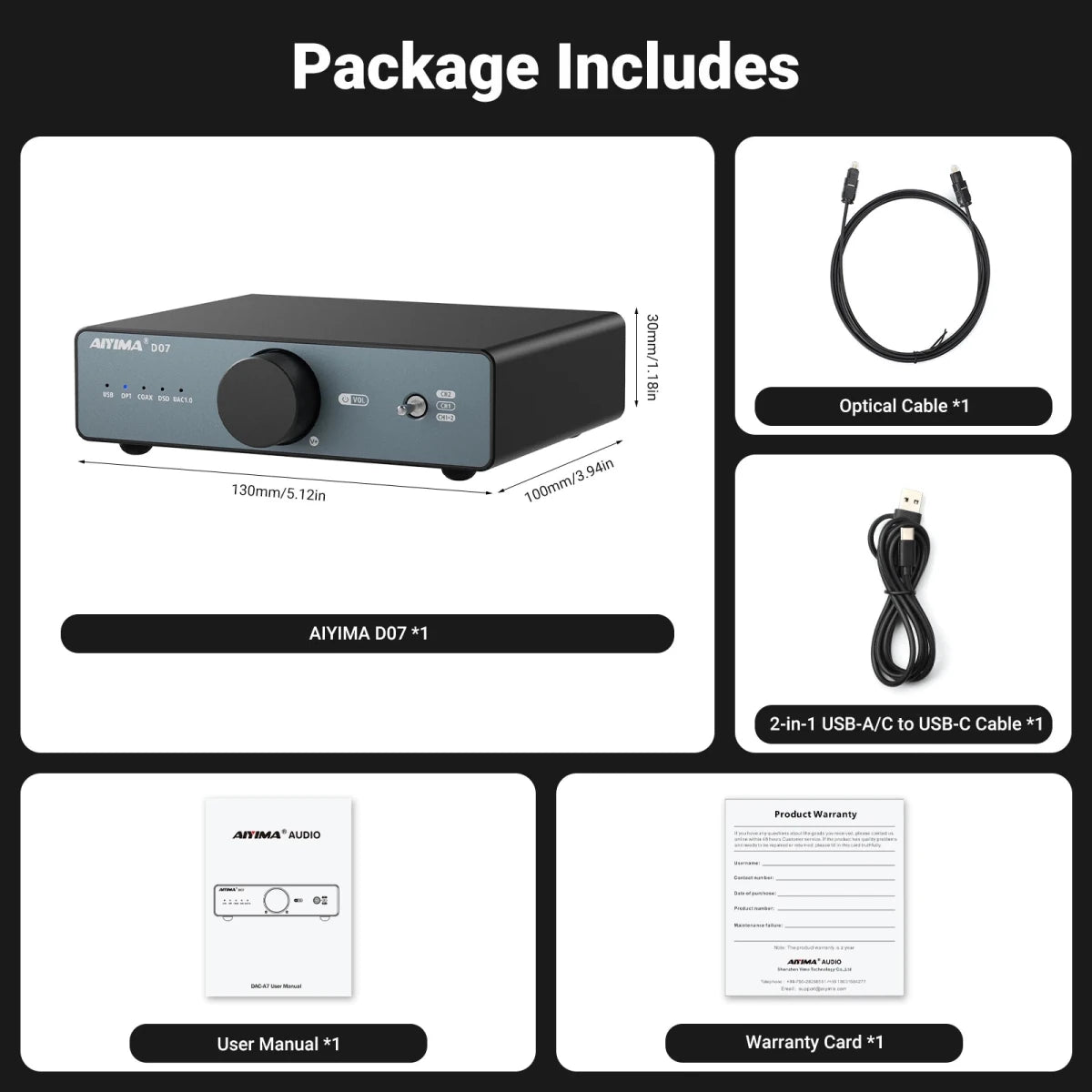

Package Include:

AIYIMA D07*1

2-in-1 USB-A/C to USB-C Cable *1

Optical Cable *1

User Manual *1

Warranty Card*1
